산업용 풀칼라 스마트 시스템 전광판
기본설명
Standard Features- BSD-Series is a Microcomputer based Product designed to operate with High technology.
- InfraRed Remocon, 4-20 mA Signal and Serial, Ethernet, Communication
- Built-in Temperature Sensor, Sensor
- Provides a voice notific
자료
2022 BSD-P160-0430.pdf (563.7K)본문
상품정보

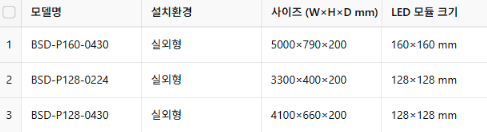

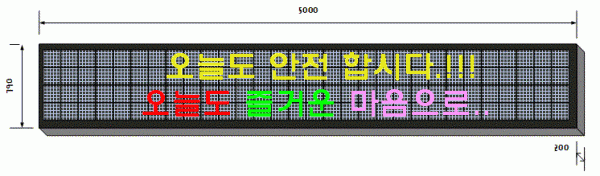

ⅠModel. BSD-P160-0430
▐ Type : Mircro Controller내장형, 4단 30열
▐ LED Display Color range : Full Color / 4,096
▐ 16 x 16 SMD Dots Type
▐ Outdoor Type
▐ Max Brightness(cd/m²) : 4,700
▐ ViewingAngle : 170 / 120

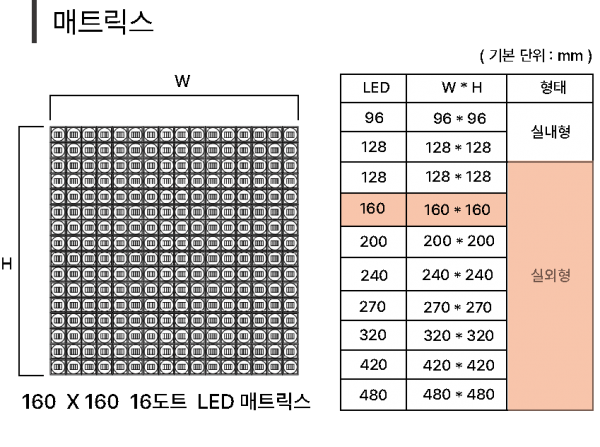

▐ 160 mm x 160 mm matrix Led
Height : 790 mm
Width : 5,000 mm
Depth : 200 mm

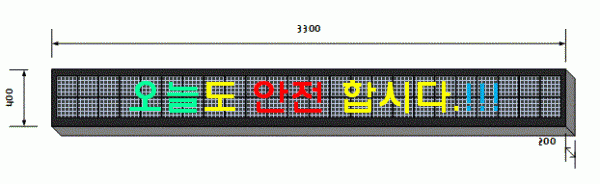

Ⅱ Mode . BSD-P128-0224
▐ Type : Mircro Controller내장형, 2단 24열
▐ LED Display Color range : Full Color / 4,096
▐ 16 x 16 SMD Dots Type
▐ Outdoor Type
▐ Max Brightness(cd/m²) : 4,700
▐ ViewingAngle : 170 / 120

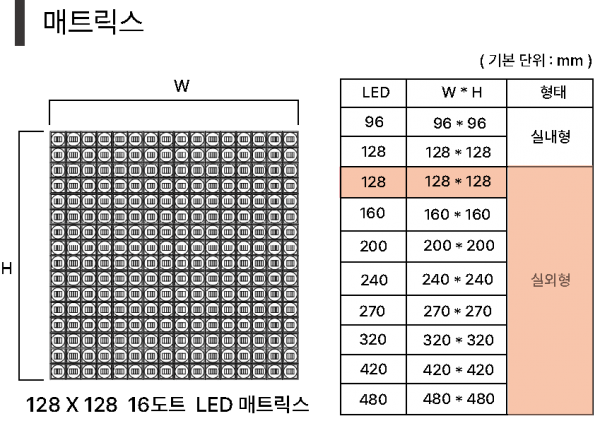

▐ 128 mm x 128 mm matrix Led
Height : 400 mm
Width : 3,300 mm
Depth : 200 mm

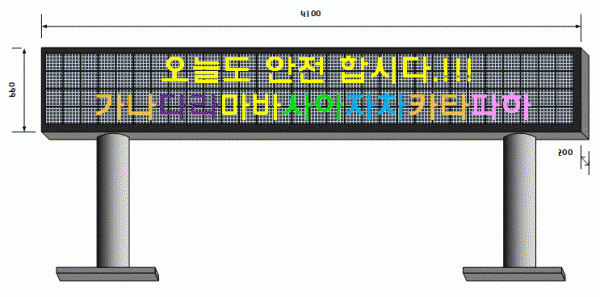

Ⅲ Mode . BSD-P128-0430
▐ Type : Mircro Controller내장형, 4단 30열
▐ LED Display Color range : Full Color / 4,096
▐ 16 x 16 SMD Dots Type
▐ Outdoor Type
▐ Max Brightness(cd/m²) : 4,700
▐ ViewingAngle : 170 / 120
▐ 128mm x 128mm matrix Led
Height : 660 mm
Width : 4,100 mm
Depth : 200 mm
