원격 살수 장치 (Remote water spraying device)
기본설명

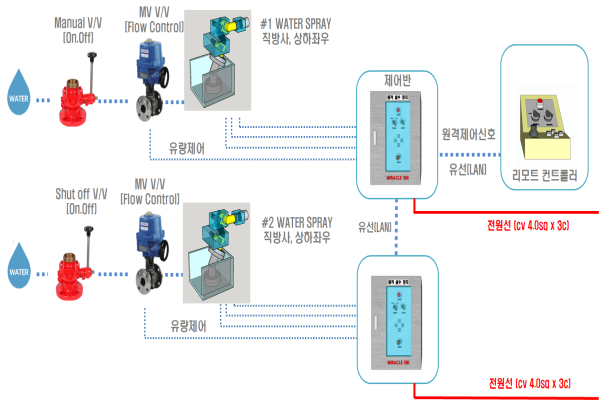

원격에서 전동식으로 운전이 가능한 ‘원격 살수 장치'무선,유선,적외선 통신가능
쉽고 간편한 조작 및 빠른 작업 습득 가능
재해율 감소
직사, 방사
화재 발생 시 소화 용도로 전환 가능

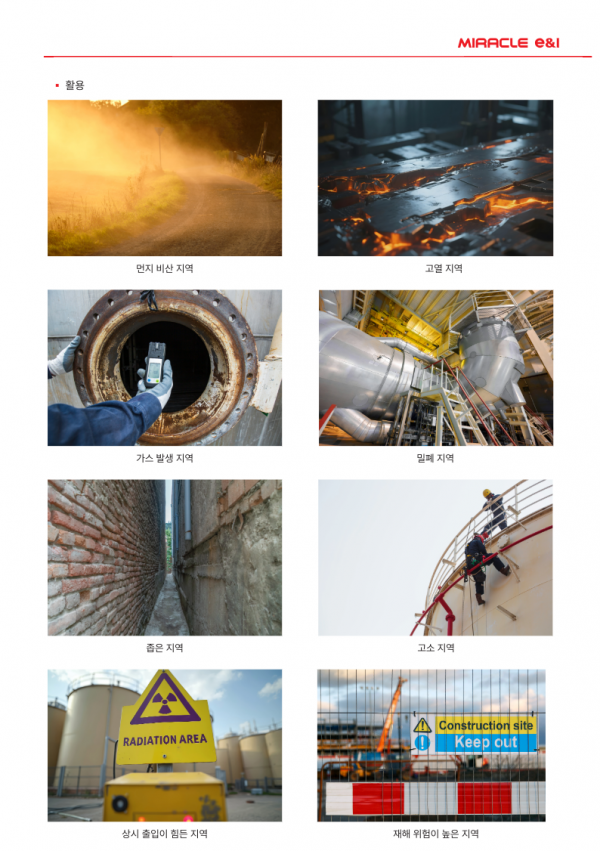

본 용도 외 많은 곳에 활용 가능 (airports, warehouses, ports and docks, ships, fire-fighting vessels, offshore fixed platforms, and fire trucks )
본문
상품정보

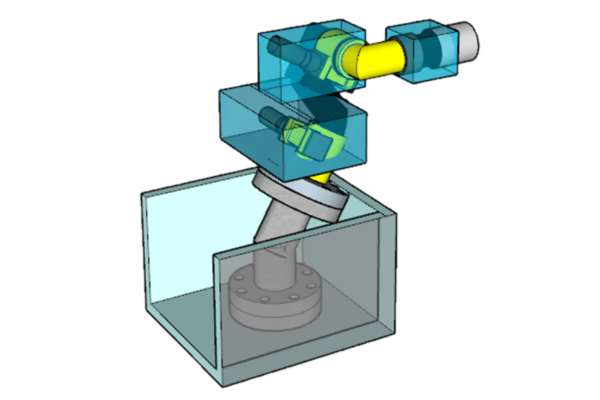

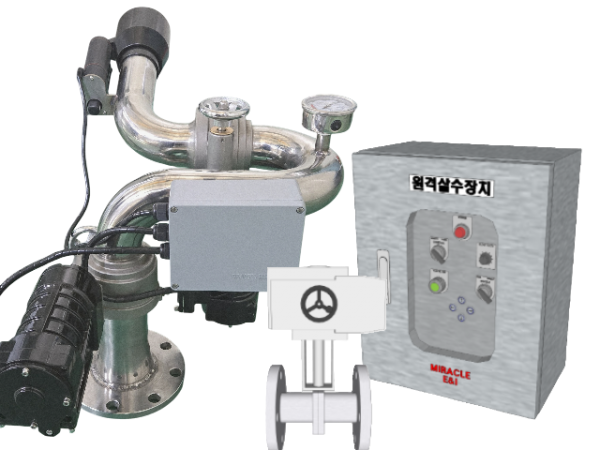

Fixed Electrically Controlled Fire Monitor is a fire-extinguishing and cooling fire-fighting equipment that realizes directional spraying through electric control.

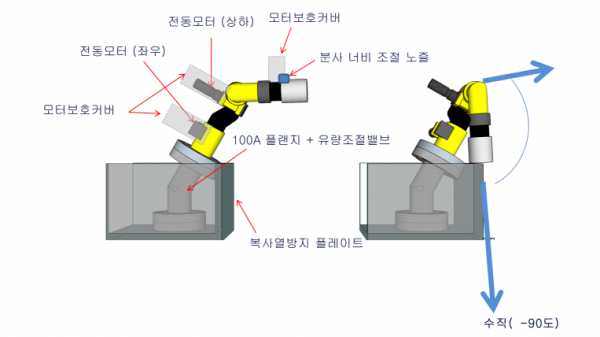

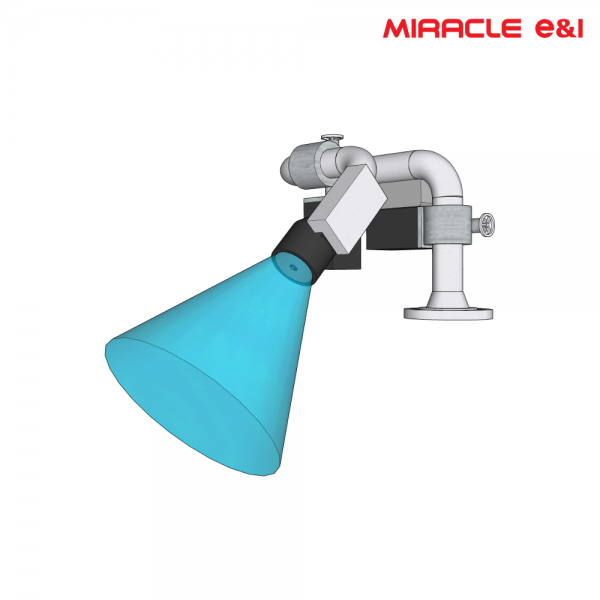

It can adjust the switch between direct jet and spray modes via the motor at the spray outlet, achieving long-distance jetting and short-range blooming coverage.
It features outdoor rainproof protection level, long range, simple structure, stable and reliable performance, flexible operation, and convenient maintenance.
This fire monitor is applicable to facilities such as airports, warehouses, ports and docks, ships, fire-fighting vessels, offshore fixed platforms, and fire trucks.
|

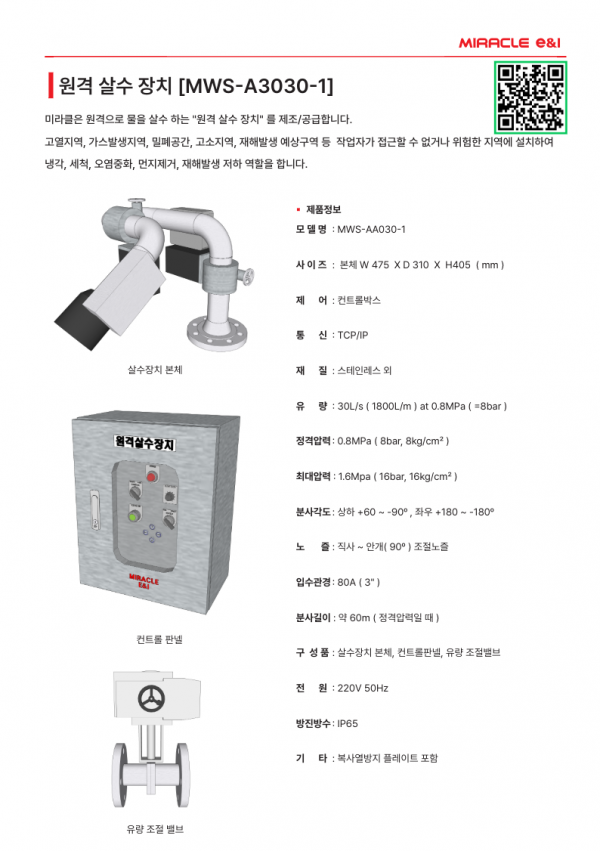

Parameter | |
|
Flow Rate |
30 L/s |
|
Rated Working Pressure |
0.8 MPa |
|
Maximum Working Pressure |
1.6 MPa |
|
Range |
≥60 m |
|
Maximum Spray Angle |
≥90° |
|

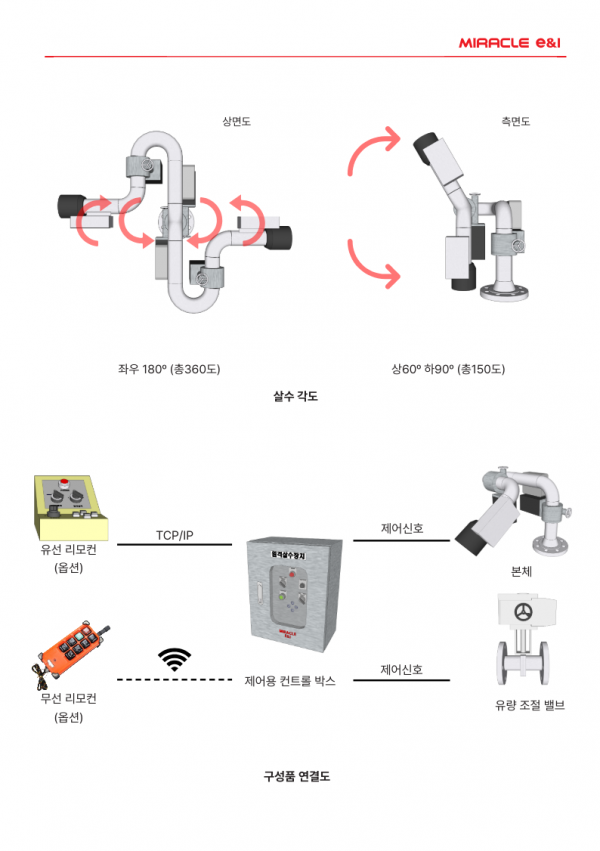

Horizontal Rotation Angle |
≥350° |
|
Maximum Elevation Angle |
≥+60° |
|
Minimum Depression Angle |
≤-15° |
|
Protection Class |
IP65 |
